PE2-28-1R018R0-5R0-20LM-12-SFF Active

Low Noise Amplifier

Product Feature
Additional Documents

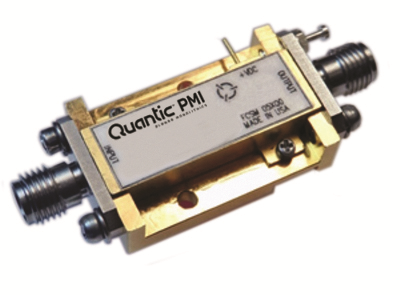

Quantic PMI Model PE2-28-1R018R0-5R0-20LM-12-SFF is a low noise amplifier that operates over the frequency range of 1 to 18 GHz with a gain of 28 dB; 5.5 dB noise figure; gain flatness is ±1.25 dB; OP1dB of 15 dBm; and a 2.0:1 maximum VSWR. This amplifier is supplied in our standard PE2 housing that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 18
Frequency Min (GHz): 1
Frequency Max (GHz): 18
Gain (dB): 28 dB Typ
Gain Flatness: ±1.25 dB Typ
Noise Figure (dB): 5.5 dB Max
OP1dB (dBm): 15 dBm Min
Psat (dBm): 18 dBm Typ
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 200 mA Typ
Connectors: SMA (F)
Size: PE2
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
