PE2-28-15G18G-4R0-13-12-SMM Preliminary

Low Noise Amplifier

Product Feature

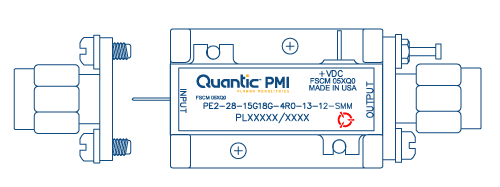

Quantic PMI Model PE2-28-15G18G-4R0-13-12-SFF is a 15 to 18 GHz, Low Noise Amplifier offers a typical gain of 26 dB at the 10 to 18 GHz frequency rage with a gain flatness of ±0.5 dB, a maximum noise figure of 4 dB, and a minimum OP1dB of 13 dBm.   This amplifier is supplied in our standard PE2 housing that can be used as a SMA male connectorized unit or as a surface mount component.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 15 to 18
Frequency Min (GHz): 15
Frequency Max (GHz): 18
Gain (dB): 26 dB Typ @ 10 to 18 GHz
Gain Flatness (dB): ±0.5 dB Max
Gain Flatness (dB) - Measured: ±0.5 dB Max @ +25 ºC,
±0.7 dB Max @ -55 to 85 ºC
Noise Figure (dB): 4 dB Typ
VSWR In/Out: 1.5:1 Typ, 1.8:1 Max
OP1dB (dBm): 13 dBm Min
RF Input Power: 20 dBm CW
Isolation: -65 dB Typ @ 10 to 13 GHz,
-60 dB Typ @ 15 to 18 GHz
DC Voltage: +12 to +15 VDC
DC Current Draw: 200 mA Max
Connectors: SMA Male - removable
Size: 1.08" x 0.71" x 0.32"
Housing: PE2
Finish: Gold Plated
Environmental Ratings:
Temperature (Operating): -55 ºC to 85 ºC
Temperature (Non-Operating): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
