PE2-25-218-20-12-SFF Active

Low Noise Amplifier

Buy Now
Product Feature

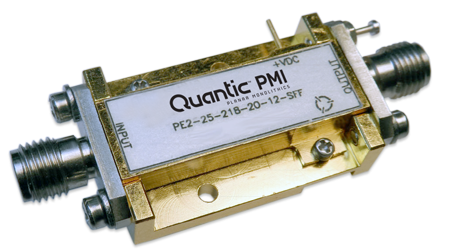

Quantic PMI Model PE2-25-218-20-12-SFF is a 2 to 18 GHz Low Noise Amplifier that provides greater than 25 dB of gain while maintaining a maximum gain flatness of ±1.5 dB maximum over the operating frequency. The noise figure is 4.5 dB typical and offers an OP1dB of 20 dBm minimum. The operating voltage is +12 to 15 VDC and the current draw is 300 mA maximum. Supplied in our standard PE2 housing (1.08" x 0.71" x 0.26") that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 18
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Gain (dB): 25 dB Min
Gain (Measured): 25 dB Max - Measured 25.86 dB
Gain Flatness: ±1.5 dB Max
Noise Figure (dB): 4.5 dB Typ,
5.5 dB Max
Noise Figure (Measured): 4.5 dB Typ,
5.5 dB Max -
Measured 4.18 @ 2 GHz,
2.47 dB @ 6 GHz,
2.55 dB @ 12 GHz,
3.94 dB @ 18 GHz
OP1dB (dBm): 20 dBm Min
VSWR In/Out: 2.0:1 Max - Measured 1.59:1 / 1.43:1
DC Voltage (VDC): +12 to 15 VDC
DC Current (mA): 350 mA Max - Measured 294 mA
Connectors: SMA Female - removable
Housing: PE2
RF Input Power: 18 dBm Max
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating,
-65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202F, METHOD 204D, COND. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
