PE2-25-200M18-3D5-25-SFF Active

Low Noise Amplifier

PE2-25-200M18-3D5-25-SFF
Product Feature

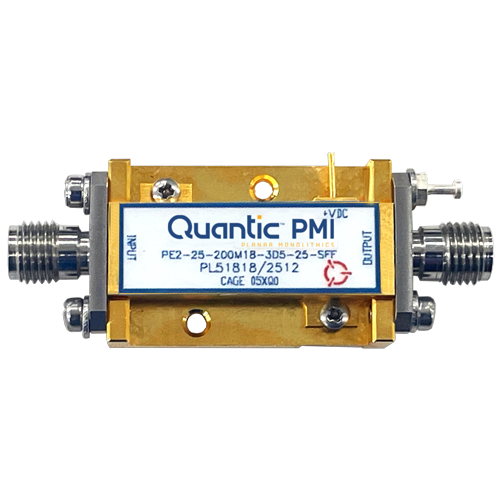

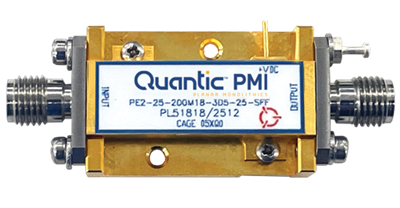

Quantic PMI Model PE2-25-200M18-3D5-25-SFF is a 0.2 to 18 GHz Low Noise Amplifier that provides >23 dB of gain while maintaining a maximum gain flatness of ±2 dB maximum over the operating frequency. The noise figure is 5 dB maximum 0.5 to 18 GHz and offers an OP1dB of 23 dBm minimum. This Model uses an operating voltage of +12 to +15 VDC with a current draw of 300 mA maximum. Supplied in our PE2  housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.2 to 18
Frequency Min (GHz): 0.2
Frequency Max (GHz): 18
Gain (dB): 25 dB Typ,
23 dB Min
Gain Flatness: ±2 dB Max
Noise Figure (dB): 9 dB Max (0.2 to 0.5 GHz),
5 dB Max (0.5 to 18 GHz)
OP1dB (dBm): 25 dBm Typ,
23 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 300 mA Max
Input Power: 20 dBm Max
Connectors: SMA female - removable
Size: 1.08" x 0.71" x 0.29"
Housing: PE2
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
