PE2-24-8D5G9D5G-4R8-18-SFF
Preliminary
PMI Model No. PE2-24-8D5G9D5G-4R8-18-SFF is a low noise amplifier that operates from 8.5 to 9.5 GHz.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Min: | 8.5 GHz |
|---|
| Frequency Max: | 9.5 GHz |
|---|
| Gain: | 20 dB typ., 16 dB min. |
|---|
| Gain Flatness: | ±0.75 dB max. |
|---|
| Noise Figure: | 4.2 dB typ., 4.8 dB max. |
|---|
| Connectors: | SMA (F) |
|---|

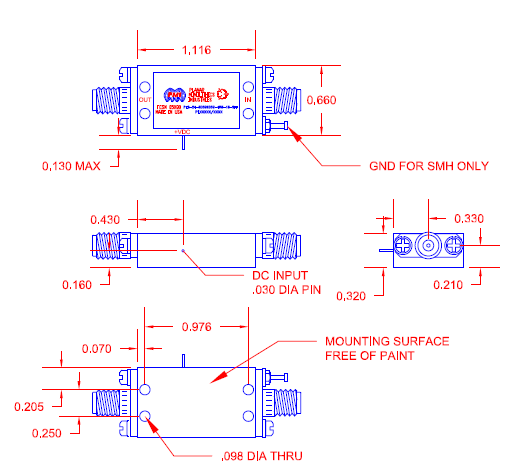

| Size: | 1.116" x 0.660" x 0.320" |
|---|
| VSWR In/Out: | 2.0:1 max./1.7:1 max. |
|---|
| OP1dB: | +18 dBm min. |
|---|
| DC Voltage: | +12 V min., +18 V max. |
|---|
| DC Current Draw: | 250 mA typ., 300 mA max. |
|---|
| OP1dB Compressoin: | +18 dBm min. |
|---|
| Third Order Two Tone: | +28 dBm min. |
|---|
| Second Harmonic: | +35 dBm min. |
|---|
| DC Current: | 250 mA typ., 300 mA max. |
|---|
| Short Term (1 Hour) CW Input Level: | +18 dBm max. |
|---|
| Peak Pulse (10 μs) Input Level: | +23 dBm max. |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -30ºC to +75ºC |
|---|
| Non-Operating Temperature: | -40ºC to +75ºC |
|---|
| Humidity: | 95% RH @ 40ºC |
|---|
| Shock: | 5 G/20 ms |
|---|
| Vibration: | 2 to 8 Hz, 10 mm Fullswing |
|---|
