PE2-22-120-5R0-10-15-SFF-ROHS Active

Low Noise Amplifier

Product Feature

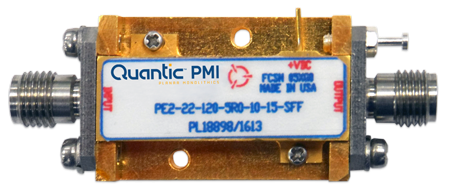

Quantic PMI Model PE2-22-120-5R0-10-15-SFF-ROHS is a low noise amplifier designed for military and industrial applications that operates over the frequency range of 1 to 20 GHz with a gain of 22 dB; 5 dB noise figure; gain flatness is ±3.0 dB; OP1dB of 10 dBm; and a 2.0:1 maximum VSWR. This amplifier is supplied in our standard PE2 housing that can be used as a SMA connectorized or a surface mount component.  RoHs compliant.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 20
Frequency Min (GHz): 1
Frequency Max (GHz): 20
Gain (dB): 22 dB Typ
Gain Flatness: ±3 dB Typ
Noise Figure (dB): 5 dB Max
OP1dB (dBm): 10 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 140 mA
Connectors: SMA Female - removable
Size: 1.08" x 0.71" x 0.29" (Excluding Connectors)
Housing: PE2
Finish: Gold Plated
DC Supply: +12 to +15 VDC
Environmental Ratings:
Temperature (Operating): -20 °C to +70 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
