PE2-20-1G40G-5R5-15-12-292FF * Active

Broadband Low Noise Amplifier

Product Feature

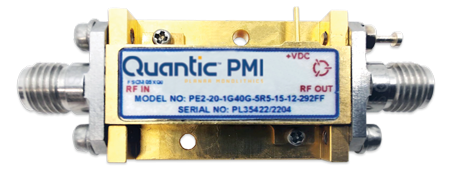

Quantic PMI Model PE2-20-1G40G-5R5-15-12-292FF is a low noise amplifier that operates over the frequency range of 1 to 40 GHz with a gain of 20 dB; 4 dB noise figure; gain flatness is ±2.75 dB; OP1dB of 15 dBm; and a 2.5:1 maximum VSWR. This amplifier is supplied in our standard PE2 housing that can be used as a 2.92mm connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 40
Frequency Min (GHz): 1
Frequency Max (GHz): 40
Gain (dB): 20 dB Min
Gain Flatness: ±2.75 dB Max
Noise Figure (dB): 4 dB Typ
OP1dB (dBm): 15 dBm Min
VSWR In/Out: 2.5:1
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 500 mA Max
Input Power: 17 dBm Max
Connectors: 2.92mm (F) Removable
Size: PE2
Environmental Ratings:
Temperature: -54 °C to +85 °C
-65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
