PE2-15-8R012R0-2R5-15-12-SFF Active

Low Noise Amplifier

PE2-15-8R012R0-2R5-15-12-SFF
Product Feature
Additional Documents

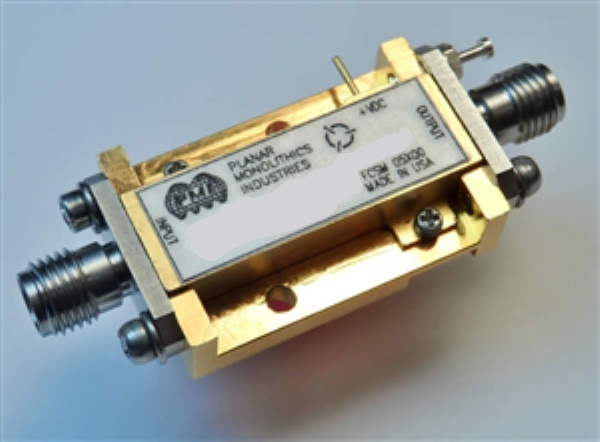

Quantic PMI Model PE2-15-8R012R0-2R5-15-12-SFF is a Low Noise Amplifier designed for military and industrial applications that operates over the 8 to 12 GHz frequency range with a typical gain of 15 dB and maintains a gain flatness of ±0.75 dB with a maximum noise figure of 2.5 dB and offers an OP1dB of 15 dBm.  Supplied in our PE2  housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 8 to 12
Frequency Min (GHz): 8
Frequency Max (GHz): 12
Gain (dB): 15 dB Typ
Gain Flatness (dB): ±0.75 dB Max
Gain Flatness (Measured): ±0.75 dB Max - Measured ±0.27 dB
Noise Figure (dB): 2.5 dB Typ
OP1dB (dBm): 15 dBm Min
VSWR In/Out: 2.0:1 Max
DC Voltage Supply (VDC): +12 to +15 VDC
DC Current Draw: 80 mA Max - Measured 75 mA
Connectors: SMA Female - removable
Size: 1.8" x 0.71" x 0.29"
Housing: PE2
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -20 ºC to +70 ºC
Temperature (Non-Operating): -55 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
