PE2-15-8G20G-4R0-20-SFF Active

Low Noise Amplifier

Product Feature

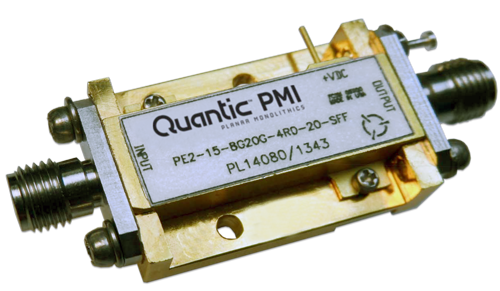

Quantic PMI Model PE2-15-8G20G-4R0-20-SFF is a 8 to 20 GHz, low noise amplifier that provides 12 dB of gain with a typical gain flatness of +±1.25 dB, a noise figure is 4 dB and offers an OP1dB of 20 dBm. The operating voltage is +11 to +15 VDC and the current draw is 225 mA. Supplied in our PE2 housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 8 to 20
Frequency Min (GHz): 8
Frequency Max (GHz): 20
Gain (dB): 12 dB Min
Gain (Measured): 12 dB Min - Measured 14.31 dB Min, 16.05 dB Max
Gain Flatness: ±1.25 dB Typ
Noise Figure (dB): 4 dB Typ
Noise Figure (Measured): 4.0 dB Typ - Measured 4.98 dB @ 20.0 GHz
OP1dB (dBm): 17 dBm Min
VSWR In/Out: 2.0:1 Max - Measured 1.28:1/1.39:1
DC Voltage (VDC): +11 to +15 VDC
DC Current (mA): 225 mA Nom - Measured 270 mA
Connectors: SMA Female - removable
Housing: PE2
Finish: Gold Plated
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating,
-65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
