PE2-15-4R08R0-3R0-21-12-SFF Preliminary

Low Noise Amplifier

PE2-15-4R08R0-3R0-21-12-SFF
Product Feature

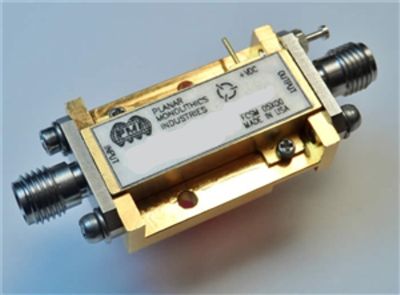

Quantic PMI Model PE2-15-4R08R0-3R0-21-12-SFF is a Low Noise Amplifier designed for military and industrial applications that operates over the 4 to 8 GHz frequency range with a typical gain of 15 dB and maintains a gain flatness of ±0.75 dB with a Maximum noise figure of 3 and offers an OP1dB of 19 dBm.  Supplied in our PE2  housing that can be used as an SMA connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 4 to 8
Frequency Min (GHz): 4
Frequency Max (GHz): 8
Gain (dB): 15 dB
Gain Flatness (dB): ±0.75 dB
Noise Figure (dB): 3 dB
OP1dB (dBm): 19 dBm
VSWR In/Out: 2.0:1 Max
DC Voltage Supply (VDC): 12 to +15 VDC
DC Current Draw: 225 mA
Connectors: SMA Female - removable
Size: 1.8" x 0.71" x 0.29"
Housing: PE2
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -20 ºC to +70 ºC
Temperature (Non-Operating): -55 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
