PE2-15-30M26R5-5R5-18-12-SFF* Active

Low Noise Amplifier

Buy Now
Product Feature

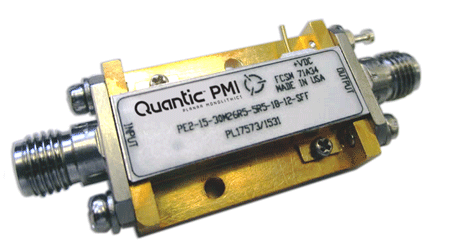

Quantic PMI Model PE2-15-30M26R5-5R5-18-12-SFF is a 0.03 to 26.5 GHz Low Noise Amplifier which provides a typical gain of 15 dB while maintaining a maximum gain flatness of ±2 dB. The typical noise figure is 5.5 dB with a minimum OP1dB of 16 dBm. This unit requires +12 to +15 VDC with current draw of 230 mA. Supplied in our standard PE2 housing (1.08" x 0.71" x 0.26") that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.03 to 26.5
Frequency Min (GHz): 0.03
Frequency Max (GHz): 26.5
Gain (dB): 15 dB Typ
Gain (Measured): 15 dB Typ - Measured 12.4 dB
Gain Flatness: ±2.0 dB Max
Gain Flatness (Measured): ±2.0 dB Max - Measured ±1.55 dB
Noise Figure (dB): 5.5 dB Typ
OP1dB (dBm): 16 dBm Min
VSWR In/Out: 2.0:1 Max, Input Measured @ 1.91:1,
Output Measured @ 1.83:1
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 230 mA - Measured 250 mA
Connectors: SMA Female - removable
Housing: PE2
Finish: Gold Plated
Environmental Ratings:
Temperature: -20 ºC to +70 ºC Operating, (-55 ºC to +85 ºC Available),
-55 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
