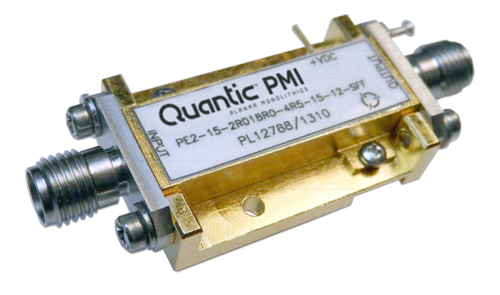

PE2-15-2R018R0-4R5-15-12-SFF Active

Low noise amplifier designed for military and industrial applications. This amplifier is supplied in our standard PE2 housing that can be used as a SMA connectorized or surface mount component. Other packages and connector types are available.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 2.0 to 18.0 GHz
Frequency Min: 2 GHz
Frequency Max: 18 GHz
Gain: 15 dB typ.
Noise Figure: 4.5 dB typ.
Gain Flatness: ±1.25 dB typ.
OP1dB: 15dBm typ.
VSWR In/Out: 2.0:1 typ.
DC Voltage Supply: +12 to +15
DC Current Draw: 85mA typ.
Environmental Ratings:
Temperature: -54ºC to +95 ºC Operating, -65ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
