PE2-12-30G40G-5R5-18-15-292FF Active

Low Noise Amplifier

Product Feature

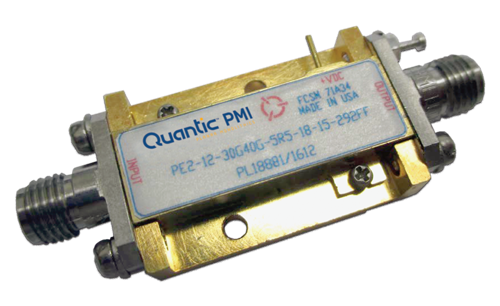

Quantic PMI Model PE2-12-30G40G-5R5-18-15-292FF is a Low Noise Amplifier designed for military and industrial applications that operates over the 30 to 40 GHz frequency range that offers a gain of 10 dB with a gain flatness of ±2 dB, a maximum noise figure of 5.5 dB, and a minimum OP1dB of 18 dBm. This amplifier is supplied in our standard PE2 housing that can be used as a 2.92mm connectorized unit or as a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 30
Frequency Max (GHz): 40
Gain (dB): 12 dB Typ
Gain Flatness (dB): ±2 dB Max
Noise Figure (dB): 5.5 dB Typ
VSWR In/Out: 2.5:1 Typ
OP1dB (dBm): 18 dBm Min
DC Voltage: +15 VDC
DC Current Draw: 300 mA Max
Connectors: 2.92mm Female - removable
Size: 1.08" x 0.71" 0.29
Housing: PE2
Finish: Gold Plated
Environmental Ratings:
Temperature (Operating): -20 °C to 70 °C
Temperature (Non-Operating): -65 °C to 125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
