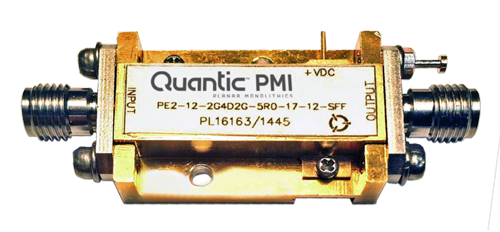

PE2-12-2G4D2G-5R0-17-12-SFF Active

Product Feature

PMI Model No. PE2-12-2G4D2G-5R0-17-12-SFF is a 2.0 to 4.2 GHz, Low Noise Amplifier that has a typical gain of +12 dB and maintains a gain flatness of +/-1.0 dB max. It has a maximum noise figure of 5.0 dB and offers an OP1dB of +17 dBm min. The unit requi

Product Specifications

General Parameters:
Status: Active
Frequency Range: 2.0 to 4.2 GHz
Frequency Min: 2 GHz
Frequency Max: 4.2 GHz
Gain: 12 dB typ.
Gain Flatness: ±1.0 dB max.
Noise Figure: 5.0 dB max.
VSWR In/Out: 2.0:1 max.
DC Voltage Supply: 12 to +15 VDC
DC Current Draw: 230 mA Nominal
OP1dB: 17 dBm min.
Input Power: 23 dBm CW max.
RF Connectors: SMA (F)
Environmental Ratings:
Temperature: -55 ºC to +85 ºC
Non-Operating: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
