PE10-15-220-3R0-15-15-SFF Active

Low Noise Amplifier

Product Feature

Quantic PMI Model PE10-15-220-3R0-15-15-SFF is a 20 to 20 GHz low noise amplifier that provides 15 dB of gain, a OP1dB of 15 dBm and a noise figure of 3.5 dB. A single voltage of +12 to +15 VDC is required and the unit is supplied having SMA female connectors in a housing that measures 0.75" x 0.43" x 0.31".

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 20
Frequency Min (GHz): 2
Frequency Max (GHz): 20
Gain (dB): 15 dB Typ
Gain Flatness: ±1.5 dB Typ
Noise Figure (dB): 3.5 dB Typ
OP1dB (dBm): 15 dBm Typ
VSWR In/Out: 2.0:1 / 2.0:1 Max
DC Voltage (VDC): +12 to +15 VDC Typ
DC Current (mA): 80 mA Typ
Connectors: SMA Female - removable

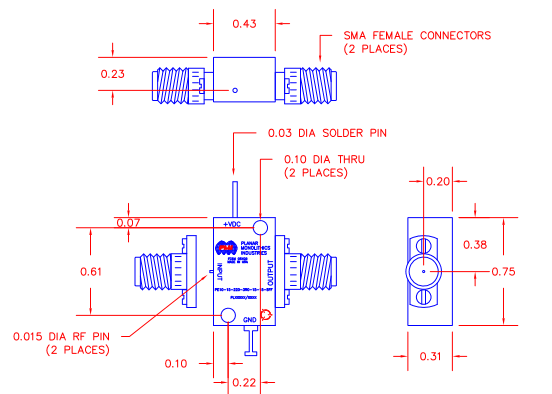

Size: 0.75" x 0.43" x 0.31"
Finish: Gold Plated
Environmental Ratings:
Temperature: -40 ºC to +85 ºC Operating,
-55 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
