PDVAT-27G31R5G-50dB Preliminary

Voltage Variable Attenuator

PDVAT-27G31R5G-50dB
Product Feature

Quantic PMI Model PDVAT-27G31R5G-50dB is a non-reflective, linearized, voltage controlled pin diode attenuator that operates over the 27 to 31.5 GHz frequency range and provides up to 50 dB of attenuation with a control voltage range of 0 to 5 Volts (10 dB/V nominal). This attenuator is supplied in a small housing measuring only 1.25" x 1.25" x 0.5" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 27 to 31.5 GHz
Frequency Min (GHz): 27
Frequency Max (GHz): 31.5
Insertion Loss (dB): 4 dB
Attenuation (dB): 50 dB
Control Type: Voltage
Dynamic Range (dB): 50 dB Min
Attenuation Accuracy (dB): ±0.5 dB @ 0 to 30 dB,
±1 dB @ 30 to 50 dB
Temperature Coefficient: ±0.025 dB/°C
Impedance (Ohms): 10 K Ohm Nom Input
Switching Time: 1 µs (ON), 0.5 µs (OFF)
VSWR: 2.0:1 Max
Operating Voltage: 0 to 5 V Nom
Power Supply: +12 V ±5 %, 120 mA
Transfer Function: 10 dB / Volt Nom
RF Connectors: SMA Female

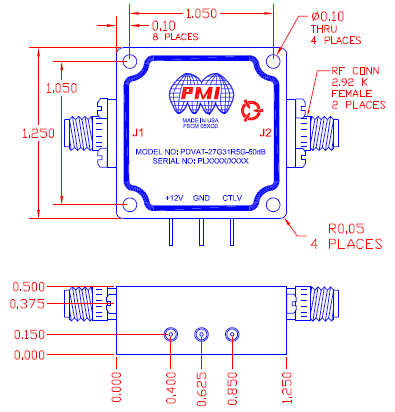

Size: 1.25" x 1.25" x 0.50"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
