PDRO-8D12G-13DBM-INT-SFF Preliminary

Dielectric Resonator Oscillator (DRO)

PDRO-8D12G-13DBM-INT-SFF

Quantic PMI Model PDRO-8D12G-13DBM-INT-SFF is a Dielectric Resonator Oscillator (DRO) with an output frequency of 8.12 GHz and a minimum output power of 13 dBm. It has a frequency accuracy @ 25°C of ±1 ppm; frequency stability over operating temperature of ±2 ppm; maximum harmonics of -20 dBc, and a load VSWR of 1.5:1.  This model contains SMA female connectors and is 2.25" x 2.25" x 0.62".

Product Specifications

General Parameters:
Status: Preliminary
Output Frequency - fo (GHz): 8.12
Frequency Stability: ±2 ppm Max
(over operating temperature)
Load VSWR: 1.5:1 Max
Output Power (dBm): 13 dBm Min
Warmup time: 5 minutes Max
Spurious: -80 dBc Max
Phase Noise: -82 dBc/Hz Max @ 100 Hz
-100 dBc/Hz Max @ 1 kHz
-105 dBc/Hz Max @ 10 kHz
-112 dBc/Hz Max @ 100 kHz
-137 dBc/Hz Max @ 1 MHz
Harmonics: -20 dBc Max
Frequency Accuracy @ 25°C: ±1 ppm Max
Mech Tuning: None
Lock Detector: TTL High - Lock
Reference: Internal
DC Current: 450 mA Max (Steady)
850 mA Max (Surge)
Supply Voltage: +12 VDC ± 10%
Connectors: SMA Female

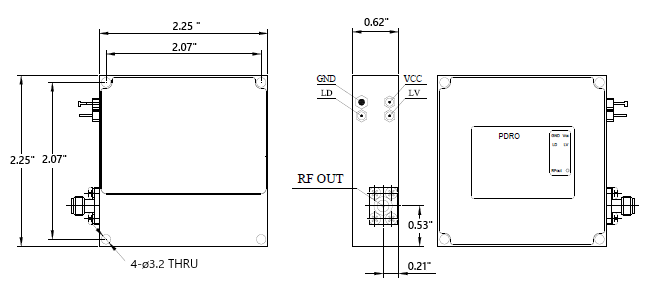

Size: 2.25" x 2.25" x 0.62"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: 0 °C to +50 °C
Non-Operating Temperature: -40 °C to +70 °C
