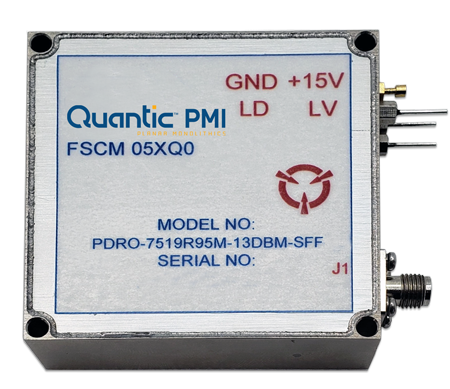

| General Parameters: |
|---|
| Status: | Active |
|---|
| Output Frequency - fo (GHz): | 7.51995 |
|---|
| Frequency Stability: | +2 ppm Max Over Operating Temperature |
|---|
| Load VSWR: | 1.5:1 |
|---|
| Output Power (dBm): | 13 dBm Min |
|---|
| Spurious: | -80 dBc Max |
|---|
| Harmonics: | -20 dBc Max |
|---|
| Reference Frequency: | Inner |
|---|
| Warm Up Time: | 5 Min Max |
|---|
| Frequency Accuracy @ 25°C: | +1 ppm Max |
|---|
| Output Level: | 13 dBm Min |
|---|
| Phase Noise @ 25°C: | -77 dBc/Hz @ 100 Hz Max
-107 dBc/Hz @ 1 kHz Max
-120 dBc/Hz @ 10 kHz Max
-121 dBc/Hz @ 100 kHz Max
-137 dBc/Hz @ 1 MHz Max
-150 dBc/Hz @ 15 MHz Max |
|---|
| Mech Tuning: | None |
|---|
| Lock Detector: | TTL High - Lock |
|---|
| DC Current: | 450 mA Max steady, 850 mA Max surge |
|---|
| Supply Voltage: | +15 VDC DC ± 10% |
|---|
| Connectors: | RF: SMA Female
Power: Through Cap |
|---|
| Size: | 2.25" x 2.25" x 0.62" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | 0 °C to +50 °C |
|---|
| Non-Operating Temperature: | -40 °C to +70 °C |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
