| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 6.7 |
|---|
| Frequency Stability: | Same as reference |
|---|
| Load VSWR: | 1.5:1 |
|---|
| Output Power (dBm): | 13 dBm Min |
|---|
| Spurious: | -75 dBc Max |
|---|
| Phase Noise: | REF Input 8 dBm Min @ 25 °C:
20logN+3 dBc/Hz @ 100 Hz Max
20logN+3 dBc/Hz @ 1 kHz Max
20logN+3 dBc/Hz @ 10 kHz Max
20logN+3 dBc/Hz @ 100 kHz Max
-140 dBc/Hz @ 1 MHz Max |
|---|
| Harmonics: | -20 dBc Max |
|---|
| Reference Frequency: | 100 MHz |
|---|
| Output Level: | 13 dBm Min |
|---|
| Lock Detector: | TTL HIGH - LOCK |
|---|
| Input Level: | 3 to 13 dBm |
|---|
| DC Current: | 300 mA Max |
|---|
| Supply Voltage: | +12 to 15 VDC |
|---|
| Connectors: | RF: SMA Female
Power: Through Cap |
|---|

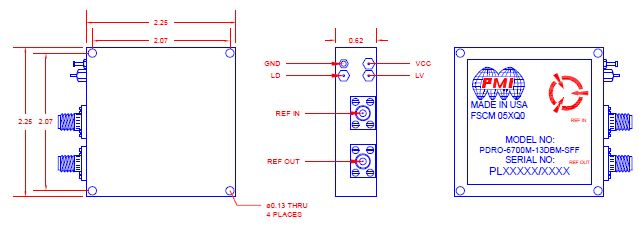

| Size: | 2.25" x 2.25" x 0.62" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +70 °C |
|---|
| Non-Operating Temperature: | -55 °C to +125 °C |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
|---|
