| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 18.2 |
|---|
| Frequency Stability: | Same as Reference |
|---|
| Load VSWR: | 1.5:1 |
|---|
| Output Power (dBm): | 13 dBm Min |
|---|
| Spurious: | -70 dBc Max |
|---|
| Phase Noise: | -75 dBc/Hz@ 100 Hz Max
-100 dBc/Hz @ 1 kHz Max
-110 dBc/Hz@ 10 kHz Max
-110 dBc/Hz@ 100 kHz Max
-128 dBc/Hz@ 1 MHz Max |
|---|
| Harmonics: | -20 dBc |
|---|
| Reference Frequency: | 5 MHz |
|---|
| Output Level: | 13 dBm Min |
|---|
| Lock Detector: | TTL High Lock |
|---|
| Input Level: | -3 to 3 dBm |
|---|
| DC Current: | 500 mA Max |
|---|
| Supply Voltage: | +12 VDC ± 10% |
|---|
| Connectors: | RF: SMA Female
Power & Phase Lock Alarm: Thru Capacitance
Ground: Solder Pin / GND Lug |
|---|

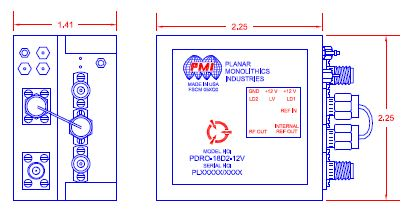

| Size: | 2.25” x 2.25” x 1.41" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +70 °C |
|---|
| Non-Operating Temperature: | -55 °C to +85 °C |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
|---|
