PDRO-11D6-12V
Preliminary
Phase Locked Dielectric Resonator Oscillators (PDRO)

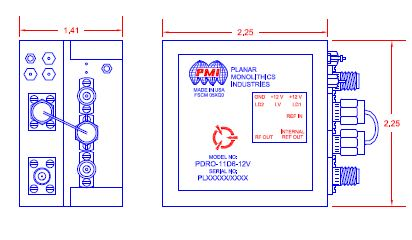

Quantic PMI Model PDRO-11D6-12V is a Phase Locked Dielectric Resonator Oscillators (PDRO) with an output frequency of 11.6 GHz and a minimum output level of 13 dBm. Package size is 2.25" x 2.25" x 1.41" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 11.6 |
|---|
| Frequency Stability: | Same as reference |
|---|
| Load VSWR: | 1.5:1 |
|---|
| Output Power (dBm): | 13 dBm Min |
|---|
| Spurious: | -70 dBc Max |
|---|
| Phase Noise: | -75 dBc/Hz @ 100 Hz Max
-100 dBc/Hz @ 1 kHz Max
-110 dBc/Hz @ 10 kHz Max
-110 dBc/Hz@ 100 kHz Max
-128 dBc/Hz @ 1 MHz Max |
|---|
| Harmonics: | -20 dBc Max |
|---|
| Reference Frequency: | 5 MHz |
|---|
| Output Level: | 13 dBm Min |
|---|
| Lock Detector: | TTL High-Lock |
|---|
| Input Level: | 0 ± 3 dBm |
|---|
| DC Current: | 500 mA Max |
|---|
| Supply Voltage: | +12 VDC ± 10% |
|---|
| Connectors: | RF : SMA Female
Power & Phase Lock Alarm: Solder Pin
Ground: Solder PIn / GND Lug |
|---|
| Size: | 2.25" x 2.25" x 1.41" |
|---|
| Finish: | Unpainted |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +70 °C |
|---|
