| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 11.1 |
|---|
| Frequency Stability: | Same as Reference |
|---|
| Load VSWR: | 1.5:1 |
|---|
| Output Power (dBm): | 13 dBm Min |
|---|
| Spurious: | -70 dBc Max |
|---|
| Phase Noise: | -88 dBc/Hz @ 100 Hz Max
-110 dBc/Hz @ 1 kHz Max
-118 dBc/Hz @ 10 kHz Max
-120 dBc/Hz @ 100 kHz Max
-140 dBc/Hz @ 1 MHz Max |
|---|
| Harmonics: | -20 dBc Max |
|---|
| Reference Frequency: | 10 MHz |
|---|
| Warm Up Time: | 5 minutes |
|---|
| Output Level: | 13 dBm Min |
|---|
| Lock Detector: | TTL High - Lock, TTL Lo - Out of Lock |
|---|
| Input Level: | 3 to 10 dBm |
|---|
| DC Current: | 450 mA Max |
|---|
| Supply Voltage: | +12 VDC ± 10% |
|---|
| Connectors: | RF: SMA Female
Power and Phase Lock Alarm: Thru Capacitance
Ground: Solder Pin |
|---|

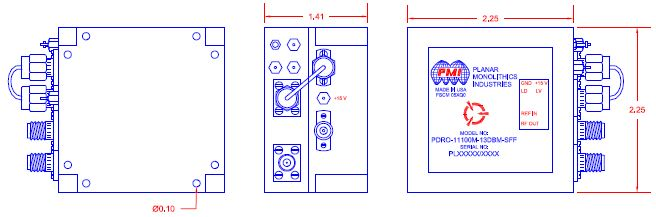

| Size: | 2.25” x 2.25” x 1.41" |
|---|
| Finish: | Unpainted |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +70 °C |
|---|
| Non-Operating Temperature: | -55 °C to +85 °C |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
