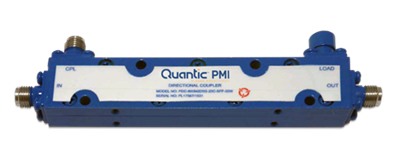

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.8 to 2.5 GHz |
|---|
| Frequency Min (GHz): | 0.8 |
|---|
| Frequency Max (GHz): | 2.5 |
|---|
| Coupling (dB): | 20 ± 1.0 |
|---|
| Directivity (dB): | 20 Min |
|---|
| Insertion Loss (dB): | <=0.4 dB (Excluding Coupled Power) Measured 0.30 dB |
|---|
| VSWR: | <=1.20:1 - Measured 1.16:1 |
|---|
| Power Handling: | Average <=50 W, Peak <=1 KW |
|---|
| Impedance: | 50 Ohm |
|---|
| Frequency Sensitivity: | =<+0.7 dB - Measured ±0.36 dB |
|---|
| RF Connectors: | SMA (F) |
|---|
| Size: | 3.346" x 0.669" x 0.433" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
