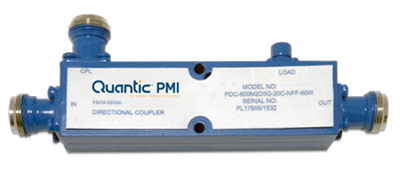

General Parameters: |
Status: | Active |
Frequency Range: | 0.8 to 2.5 GHz |
Frequency Min: | 0.8 GHz |
Frequency Max: | 2.5 GHz |
Coupling: | 20 ± 1.0 dB |
Coupling (Measured): | 20 ± 1.0 dB - Measured 20 ±0.68 dB |
Directivity: | 20 dB Min |
Directivity (Measured): | 20 dB Min - Measured 21.49 dB |
Insertion Loss: | 0.4 dB - Measured 0.25 dB, (Excluding Coupled Power) |
VSWR: | 1.25:1 - Measured 1.16:1 |
Power Handling: | Average <=60 Watts, Peak <= 1 KW |
RF Connectors: | N Female |
Size: | 3.937" x 1.103" x 0.866" |
Finish: | Painted Blue |
Impedance: | 50 Ohms |
Frequency Sensitivity: | ±0.7 dB - Measured ±0.34 dB |
Environmental Ratings: |
Operating Temperature: | -55 ºC to +85 ºC |
Non-Operating Temperature: | -65 ºC to +125 ºC |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
