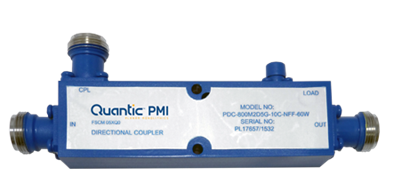

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | 0.8 to 2.5 GHz |
|---|
| Frequency Min: | 0.8 GHz |
|---|
| Frequency Max: | 2.5 GHz |
|---|
| Coupling: | 10±0.8 dB |
|---|
| Coupling (Measured): | 10±0.8 dB - Measured 10 ±0.65 dB |
|---|
| Directivity: | 20 dB Min |
|---|
| Directivity (Measured): | 20 dB Min - Measured 27.54 dB |
|---|
| Insertion Loss: | <0.5 dB - Measured 0.37 dB, (Excluding Coupled Power) |
|---|
| VSWR: | <1.25:1 - Measured 1.2:1 |
|---|
| Power Handling: | Average <60 Watts, Peak <1 KW |
|---|
| RF Connectors: | N Female |
|---|
| Size: | 3.937" x 1.103" x 0.866" |
|---|
| Finish: | Painted Blue |
|---|
| Impedance: | 50 Ohm |
|---|
| Frequency Sensitivity: | <±0.7 dB - Measured ± 0.20 dB |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
