PDBMX-18G40G-25-11-24FF Preliminary

Double-Balanced Mixer

Product Feature

Quantic PMI Model PDBMX-18G40G-25-11-24FF is a Double-Balanced Mixer operating from 18 to 40 GHz. This unit provides a typical isolation of 25 dB and a conversion loss of 11 dB. This mixer is outfitted with 2.4mm female connectors on a 0.56" x 0.52" x 0.39" package.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range: 18 to 40 GHz
Frequency Min: 18 GHz
Frequency Max: 40 GHz
Connectors: 2.4mm (F)

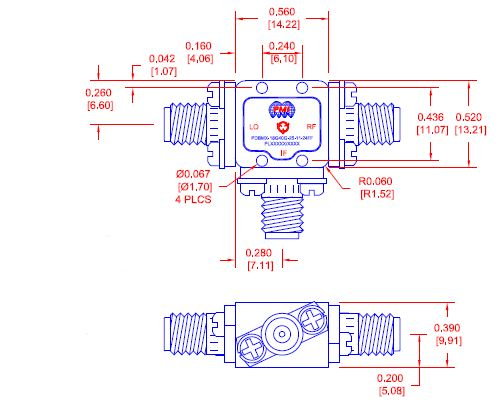

Size (Excluding Connectors): 0.56" x 0.52" x 0.39"
Conversion Loss: 11 dB
Isolation: 25 dB
IF Frequency Range: 2 to 18 GHz
Input IP3: +16 dBm (+13 to +17 dBm LO Drive Level)
Input P1dB: +6 dBm (+13 to +17 dBm LO Drive Level)
Finish: Painted Blue
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Storage): -65 ºC to +125 ºC
Vibration: MIL-STD-202, Method 204D Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Humidity: MIL-STD-202, Method 103B Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
