PCH-180-1R5G2R15G-SFF Preliminary

Product Feature

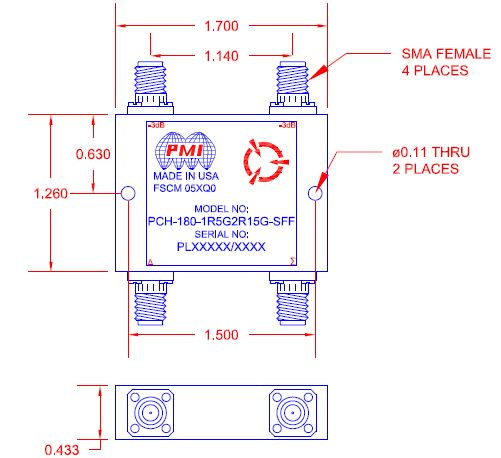

PMI Model No. PCH-180-1R5G2R15G-SFF is a 180 degree hybrid coupler that operates over the frequency range of 1.5 to 2.15 GHz. It has a maximum insertion loss of 0.35 dB and a minimum isolation of 20 dB. This model is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min: 1.5 GHz
Frequency Max: 2.15 GHz
Input Power: 20 W
Isolation: 20 dB min.
Amplitude Balance: ±0.3 dB max.
Phase Balance: ±3° max.
Frequency Range: 1.5 to 2.15 GHz
Insertion Loss: 0.35 dB max.
VSWR: 1.25:1 max.
Impedance: 50 Ohms
Connector: SMA (F)
Nominal Split: 3.01 dB
Power Handling: Average: 20 W max.
Peak: 1 KW max.
Environmental Ratings:
Operating Temperature: -55°C to +85°C
Non-Operating Temperature: -65°C to +125°C
Humidity: Up to 95%, Non-Condensing
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
