PCG-500M26G-5V-SFF Preliminary

Comb Generator

Product Feature

Quantic PMI Model PCG-500M26G-5V-SFF is a 0.5 GHz RF input, 0.5 to 26 GHz output comb generator. The small size active unit allows input power of 10 dBm and is powered with +5 VDC with an output power of 3 dBm to-20 dBm; and input VSWR 2.0:1.  Housing size is 1.0" x 0.6" x 0.185" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Input Frequency Range (GHz): 0.5
Output Frequency Range (GHz): 0.5 to 26
Input Power (dBm): 10 dBm
Output Power (dBm): 3 dBm Typ (0.5 to 4 GHz),
-5 dBm Typ (4 to 8 GHz),
-15 dBm Typ (8 to 12.4 GHz),
-20 dBm Typ (12.4 to 18 GHz)
Input VSWR: 2.0:1 Max
Connectors: SMA female - removable
DC Power Supply: +5 V @ 150 mA Typ

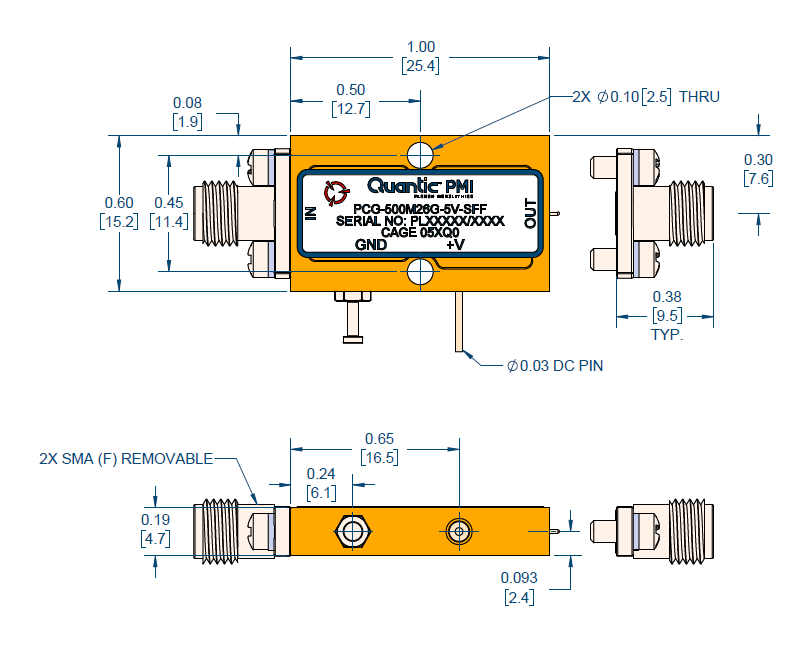

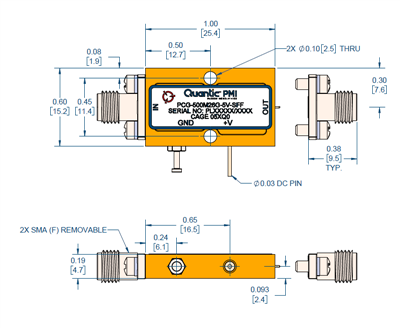

Size: 1.00" x 0.60" x 0.185"
Finish: Gold Plated
Temperature: -55 °C to +85 °C (Operating)
-55 °C to +125 °C (Sorage)
