PCG-12-0DBM-12V-SFF Active

Comb Generator

Product Feature

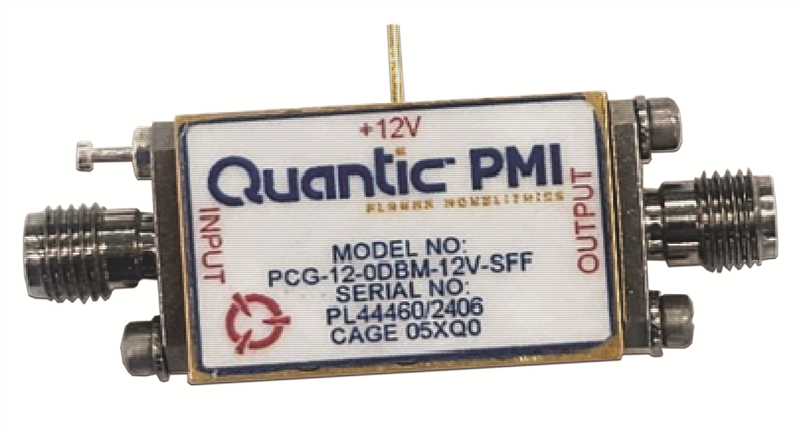

Quantic PMI Model PCG-12-0DBM-12V-SFF is a 1 to 2 GHz RF input, 1 to 26 GHz output comb generator. The small size active unit allows input power of only 0 to 5 dBm and is powered with +12 VDC. Specifications include RF input power 0 to 5 dBm; output frequency range 1 to 26 GHz; output power -20 dBm; and input VSWR 1.8:1.  Housing size is 1.0" x 0.655" x 0.38" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Input Frequency Range (GHz): 1 to 2
Output Frequency Range (GHz): 1 to 26
Input Power (dBm): 0 to 5 dBm
Output Power (dBm): -20 dBm Typ
Input VSWR: 1.8:1 Max
Connectors: SMA Female - removable
DC Power Supply: +12 VDC @ 380 mA Max
Size: 1.0" x 0.655" x 0.38"
Finish: Gold plated
Temperature: -55 °C to +75 °C (Operating)
-55 °C to +125 °C (Storage)
