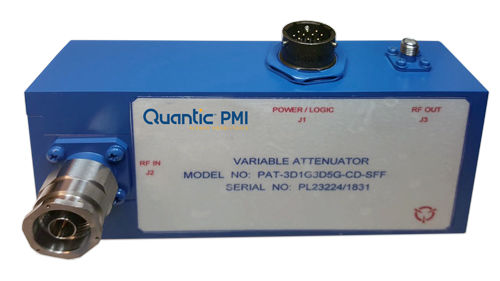

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 3.1 to 3.5 |
|---|
| Frequency Min (GHz): | 3.1 |
|---|
| Frequency Max (GHz): | 3.5 |
|---|
| Attenuation Range (dB): | 30 ± 1 dB |
|---|
| Attenuation Accuracy (dB): | ±0.1 dB over any 0.04 GHz |
|---|
| Insertion Loss (dB): | 1.1 dB Max |
|---|
| VSWR: | 1.25:1 Max (Low Loss State)
1.3:1 Max (Attenuation State) |
|---|
| Operating Input Power: | 10 dBm CW |
|---|
| Power Handling Capability: | 0.5 W peak power, 256 µs with 0.04 Duty Cycle |
|---|
| Swiching Time: | 0.5 µs Max |
|---|
| Power Supply: | +15 VDC @ 250 mA Max
-15 VDC @ 100 mA Max |
|---|
| Logic Input: | PIN D > PIN E: Low Loss State
PIN E > PIN D: Attenuation State
(input into 26LS32 Receiver) |
|---|
| Connectors: | RF Input: Type N female
RF Output: SMA female
Power & Logic: MS3124E12-10P. |
|---|
| Size: | 5.87" x 2.50" x 1.40" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -0 ºC to +60 ºC |
|---|
| Non-Operating Temperature: | -62 ºC to +75 ºC |
|---|
| Humidity: | 0% to 95% Relative Humidity |
|---|
| Shock: | 50 G, 11 mS Sawtooth Pulse, Any Direction |
|---|
| Vibration: | No Resonance Between 5 to 25 Hz No Degradation From Continous Vibration of 1.3 G's At 25 Hz For 2 Hours In Any Direction |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
