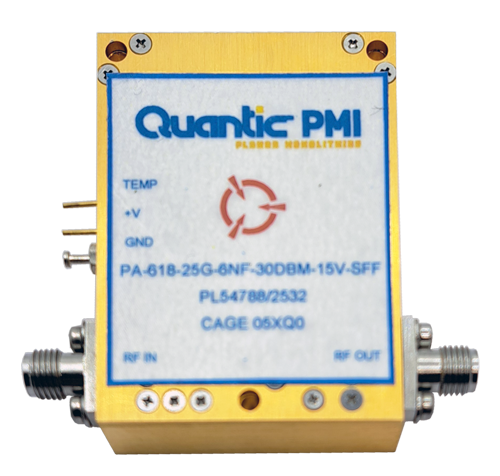

PA-618-25G-6NF-30DBM-15V-SFF Active

High Power Amplifier

Product Feature

Quantic PMI Model PA-618-25G-6NF-30DBM-15V-SFF is a High Power Amplifier that operates between 6 and 18 GHz, has between 20 and 28 dB of gain, and has a typical OP1dB of 30 dB. The package is 1.50" x 2.00" x 0.45" and has removable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 6
Frequency Max (GHz): 18
Gain (dB): 20 dB Min,
25 dB Typ,
28 dB Max
Psat: 30 dBm Typ
Input Power: 27 dBm Max
DC Supply Voltage: +15 VDC
Current Supply: 1 A
Finish: Gold Plated
Noise Figure: 5 dB Typ,
8.5 dB Max
Gain Flatness: ±2.6 dB Max

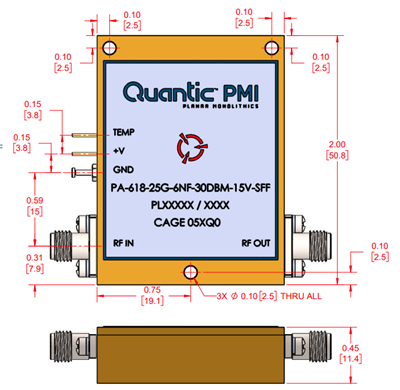

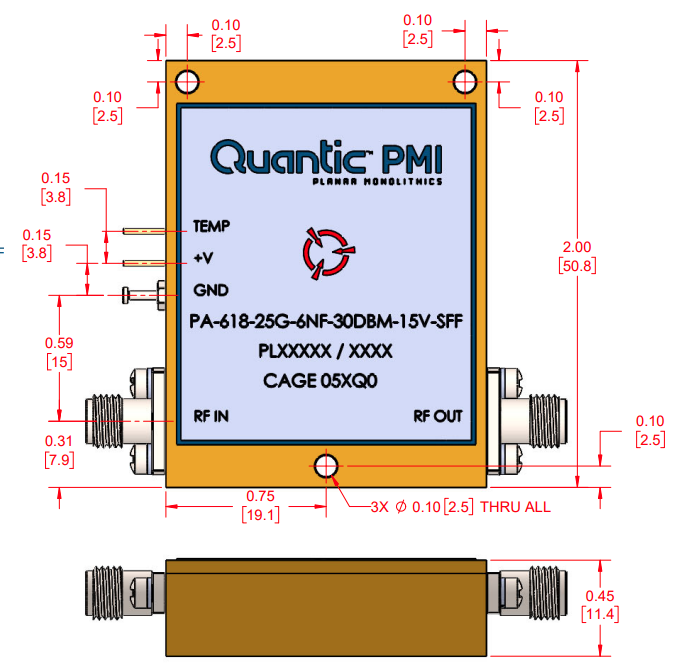

Size (Excluding Connectors): 1.5" x 2" x 0.45"
Weight: 1 oz. Max
DC Connectors: Removable SMA (F)
VSWR: 2.0:1 Max
OP1dB: 30 dB Typ
Environmental Ratings:
Operating Temperature: -40 to +85 ˚C
Non-Operating Temperature: -55 to +125 ˚C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
