PA-40-20M1G-36DBM-SFF Active

High Power Amplifier (SSPA)

Product Feature

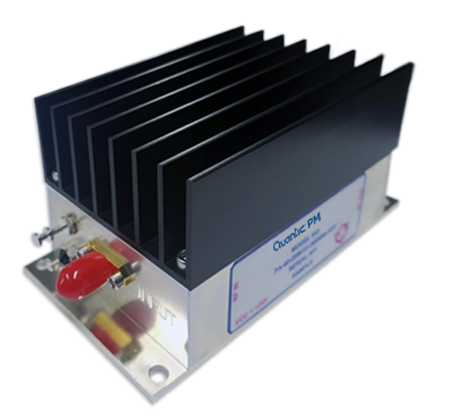

Quantic PMI Model PA-40-20M1G-36DBM-SFF is a high-power amplifier (SSPA) designed for a Psat of 40 dBm (10 W) over the 0.02 to 1 GHz frequency range with a high gain of +40 dB. This model has SMA connectors and an ultra-small package of 3.75” x 2.0” x 1.913”.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 0.02
Frequency Max (GHz): 1
Gain (dB): 43 dB Typ
39 dB Min
Psat: 40 dBm (10 W) Typ
38 dBm Min
Input Power: 10 dBm Max
Small Signal Gain: 40 dB, 38 dB Min
Input VSWR: 2.0:1 Max
Output VSWR: 2.0:1 Max
DC Supply Voltage: +22 VDC Min
+24 VDC Nom / + 28 VDC Max
Current Supply: 670 mA (Iq)
RF Connectors In/Out: SMA Female
Finish: Chem film or Alodine
Noise Figure: 6.0 dB Typ
7.0 dB Max
Max Input Power Without Damage: 10 dBm Max
Gain Flatness: ±0.8 dB Max
Output Power at 3 dB Compression: 40 dBm (10 W) Typ
38 dBm Min
Size (Excluding Connectors): 3.75” x 2.0” x 1.913”
Weight: 9 oz
VSWR: 2.0:1 Max (Input)
2.4:1 Max (Output)
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -55 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
