PA-38 OPTION 208 Active

Low Noise Amplifier

PA-38 OPTION 208
Product Feature

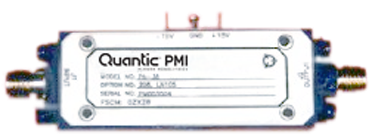

Quantic PMI Model PA-38 Option 208, LN105 is a low noise amplifier designed to operate form 2.7 to 2.9 GHz that provides a gain of 35 dB with a gain flatness of ±1.5 dB, a maximum noise figure of 1.5 dB, and a minimum OP1dB of -9 dBm. Package size is 1.85" x 0.75" x 0.4" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 2.7
Frequency Max (GHz): 2.9
Gain (dB): 35 dB @ 25 °C
Gain Flatness (dB): ±1.5 dB Max
Noise Figure (dB): 1.5 dB Max
OP1dB (dBm): -9 dBm Min
DC Voltage: +12 VDC
DC Current Draw: 100 mA
DC Supply: + 15 VDC @ 100 mA
- 15 VDC @ 10 mA
Return Loss: -5 dB Max
Connectors: SMA Female
Size: 1.85" x 0.75" x 0.40"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to 85 ºC
Temperature (Non-Operating): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
