PA-38-812-SFF Preliminary

Power Amplifier

Product Feature

Quantic PMI Model PA-38-812-SFF is a Power Amplifier that operates over the frequency range of 8 to 12 GHz with a typical small signal gain of 38 dB and a typical output power at 1 dB compression of +34 dBm. This model measures 1.93" x 2.36" x 0.57" and is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min (GHz): 8
Frequency Max (GHz): 12
Gain (dB): 36 dB Min,
38 dB Typ
Psat: 33 dBm Min,
34 dBm Typ
Small Signal Gain: 36 dB Min,
38 dB Typ
Input VSWR: 2:1 Max
Output VSWR: 2:1 Max
DC Supply Voltage: +12 V Min,
+15 V Max (With Internal Regulator)
Current Supply: 2.2 A
RF Connectors In/Out: SMA (F)
Finish: Painted Blue
Small Signal Gain Flatness: ±1.0 dB Max
Output Power at 1 dB Compression: 33 dBm Min,
34 dBm Typ
Noise Figure: 6.0 dB Max

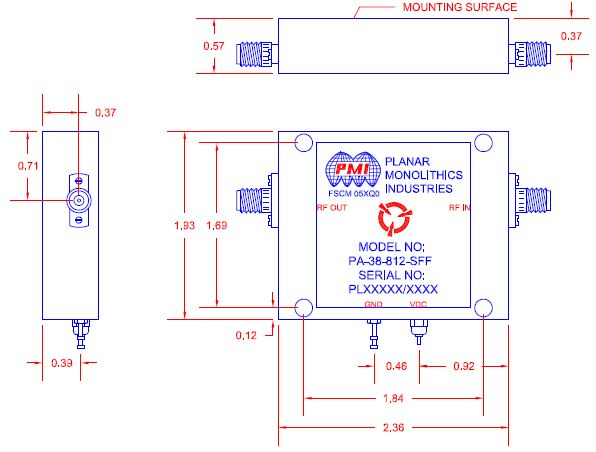

Size (Excluding Connectors): 1.93" x 2.36" x 0.57"
Environmental Ratings:
Operating Temperature: -30 °C to +70 °C
Non-Operating Temperature: -40 °C to +85 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
