PA-2G18G-43-5-40-SFF-HS Active

High Power Amplifier with Heatsink & Fan

  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/Quantic_PMI_Power_Amplifiers_2_73110987_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/PA_218_hs_57002108_800.jpg
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/PA_8G12G_43_5_40_SFF_HS_71929824_800.png
Product Feature

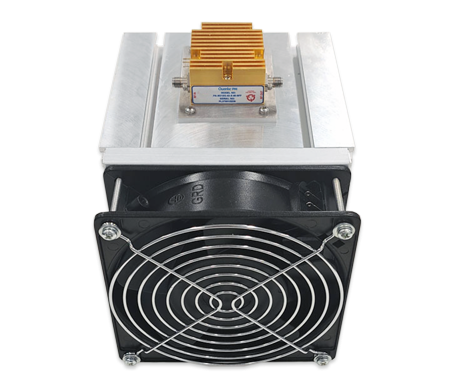

Quantic PMI Model PA-2G18G-43-5-40-SFF-HS is a high-power amplifier designed for a remarkably low noise figure of 3.5 dB and Psat of 40 dBm (10 W) over the 2 to 18 GHz frequency range with a high gain of +43 dB and ±1.5 dB gain flatness.  This model has SMA connectors and includes heatsink and 120 Vac cooling fan.  Available without heatsink as PA-2G18G-43-5-40-SFF.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 2.0 to 18.0 GHz
Input Power: 20 dBm Max
Saturation Output Power: 40 dBm (10 W) Typ
35 dBm Min
Gain: 43 dB Typ
39 dBm Min
DC Supply Voltage: +22 VDC
RF Connectors In/Out: SMA Female removable
Finish: Gold Plated
Noise Figure: 3.5 dB Typ
5.0 dB Max
Gain Flatness: ±1.5 dB Max
DC Power Supply: +22 VDC
VSWR: 2.0:1 Max
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -55 °C to +125 °C
