PA-21D2G-23D6G-10W-SFF
Preliminary
High Power Amplifier

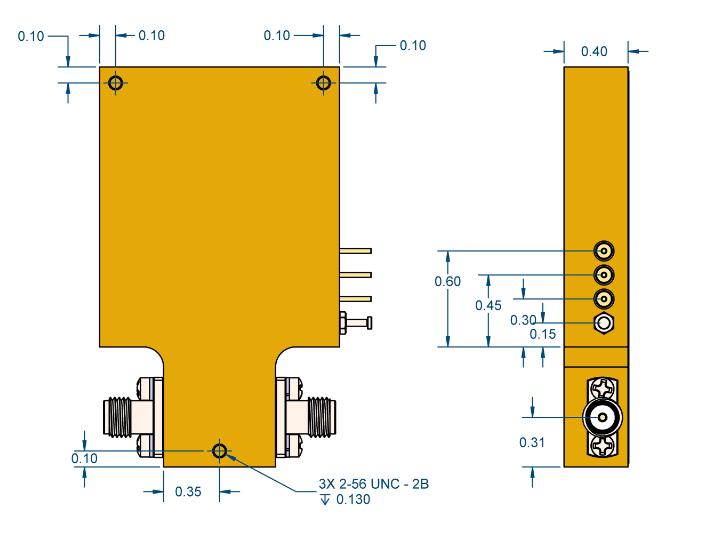

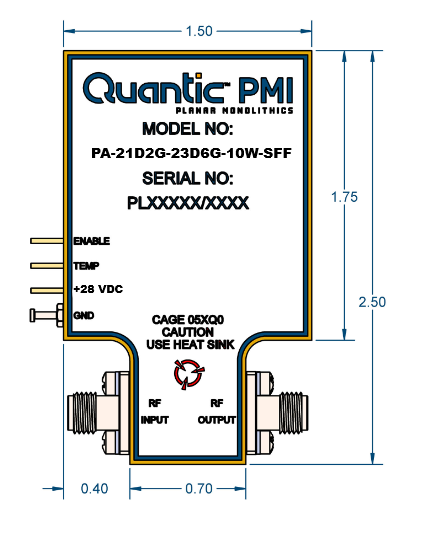

Quantic PMI Model PA-21D2G-23D6G-10W-SFF is a high-power amplifier with an operating frequency range of 21.2 to 23.6 GHz that offers 22 dB of gain and a saturated output power of 10 W (40 dBm). Package size is 2.5" x 1.5" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Min (GHz): | 21.2 |
|---|
| Frequency Max (GHz): | 23.6 |
|---|
| Gain (dB): | 22 dB Typ |
|---|
| Psat: | 10 W (40 dBm) |
|---|
| Input Power: | 26 dBm CW Max |
|---|
| Current Supply: | 300 mA Typ |
|---|
| DC Supply Voltage: | +28 VDC Typ |
|---|
| RF Connectors In/Out: | SMA Female |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -55 °C to +150 °C |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
|---|
