PA-2040-22G-8W-18V-292FF Active

High Power Amplifier

Quantic PMI Model PA-2040-22G-8W-18V-292FF is a high-power amplifier with an operating frequency range of 20 to 40 GHz that offers 22 dB of gain and a saturated output power of 8 W.   Package size is 2.5" x 1.5" x 0.4" with removable 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 20
Frequency Max (GHz): 40
Gain (dB): 22 dB Typ
Psat: 8 W Typ
Input Power: 33 dBm Max
Input VSWR: 2.0:1 Max
Output VSWR: 2.0:1 Max
DC Supply Voltage: +18 VDC
Current Supply: 2.1 A (I-q) & 3.5 A (I-Psat) Typ
RF Connectors In/Out: 2.92mm Female - removable
Finish: Gold Plated
Max Input Power Without Damage: 33 dBm Max
Size (Excluding Connectors): 2.5" x 1.5" x 0.4"
Weight: 1.0 oz Max
Environmental Ratings:
Operating Temperature: -40 °C to +65 °C
Non-Operating Temperature: -55 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A

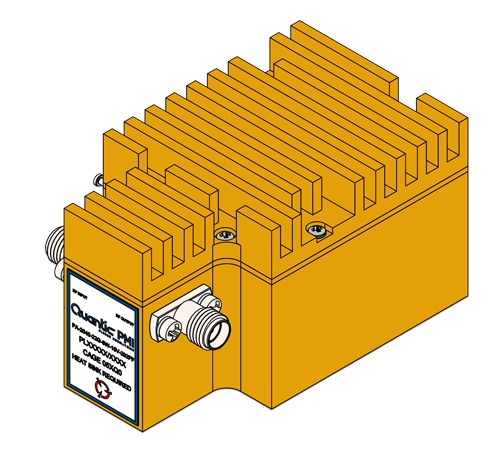

3D View
