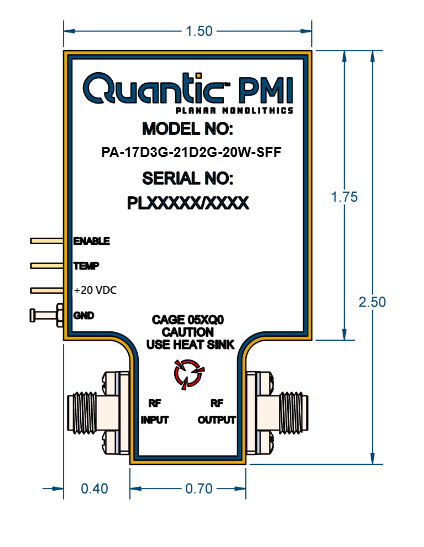

PA-17D3G-21D2G-20W-SFF Preliminary

High Power Amplifier

Quantic PMI Model PA-17D3G-21D2G-20W-SFF is a high-power amplifier with an operating frequency range of 17.3 to 21.2 GHz that offers 25 dB of gain and a saturated output power of 20 W (43 dBm).

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min (GHz): 17.3
Frequency Max (GHz): 21.2
Gain (dB): 25 dB Typ
Psat: 20 W (43 dBm) Typ
Input Power: 30 dBm CW Max
DC Supply Voltage: 20 V Typ
Current Supply: 400 mA Typ
RF Connectors In/Out: SMA (F)
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -55 °C to +150 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
