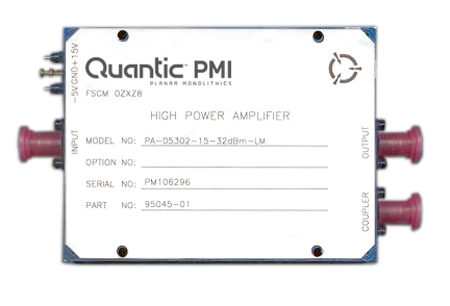

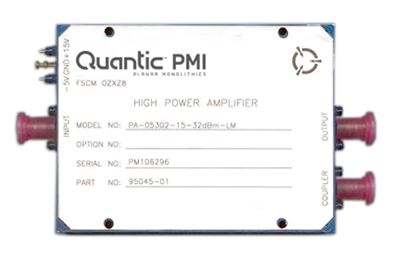

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | 0.5 to 3.2 GHz |
|---|
| Input Power: | +23 dBm |
|---|
| Saturation Output Power: | +31.5 dBm Min |
|---|
| Gain: | 14.0 dB Min |
|---|
| DC Supply Voltage: | +15 VDC @1.1 A,
-5V DC @100 mA |
|---|
| RF Connectors In/Out: | SMA Female |
|---|
| Output Power at 1 dB Compression: | +30.0 dBm Min |
|---|
| Max Input Power Without Damage: | +23 dBm |
|---|
| Gain Flatness: | +/- 3.0 dB Max |
|---|

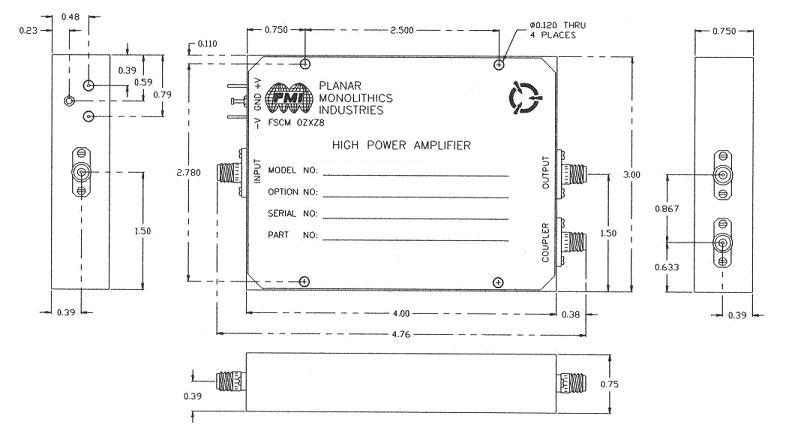

| Size (Excluding Connectors): | 4.00" x 3.00" x 0.75" |
|---|
| Weight: | 5.0 oz. |
|---|
| DC Connectors: | Solder Pins |
|---|
| RF Output Monitor Port Coupling: | 25.0 +/- 3.0 dB |
|---|
| RF Output Monitor Port Directivity: | >10.0 dB Min |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C to +85 °C Operating |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C Non-Operating |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
