P8T-500M40G-50-T-55-292FF * Active

Buy Now
Product Feature

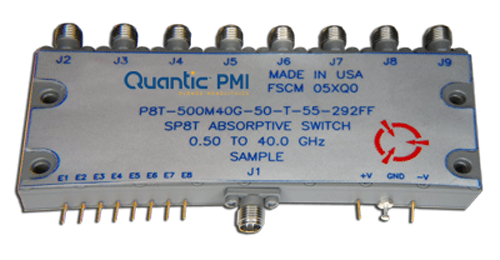

PMI Model No. P8T-500M40G-50-T-55-292FF is a high speed, single pole, eight throw, absorptive switch capable of switching within 50 nsec. The frequency range is 0.5 to 40.0 GHz and has over 45 dB of isolation. This switch is supplied with removable 292mm female connectors and measures 4.0" x 1.5" x 0.4".

Product Specifications

General Parameters:
Status: Active
Frequency: 0.5 to 40.0 GHz
Frequency Min: 0.5 GHz
Frequency Max: 40 GHz
Insertion Loss (Typ): 10 dB
Isolation (Typ): 45 dB
Reflective / Absorptive: Absorptive
Switching Speed (Typ): 50 ns
Configuration: SP8T
VSWR In/Out: 3.0:1 typ.
Isolation: 45 dB Min - Measured 49.84 dB
Insertion Loss: 10 dB typ. - Measured 9.0 dB
Input Power: +20 dBm CW
Switching Speed: 50 ns Typ. - Measured 25.9 ns
Control Signal: Eight Line TTL, "0" = insertion loss, "1" = isolation
Power Supply: +5 VDC @ 100 mA - Measured 69 mA
-5 VDC @ 50 mA - Measured 15 mA
Connectors: 2.92mm (F) removable
Size: 4.0" x 1.5" x 0.4"
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Non-Operating Temperature: -55 ºC to +125ºC
