P8T-500M40G-50-R-55-292FF * Active

SP8T Absorptive Switch

Buy Now
P8T-500M40G-50-R-55-292FF *
Product Feature

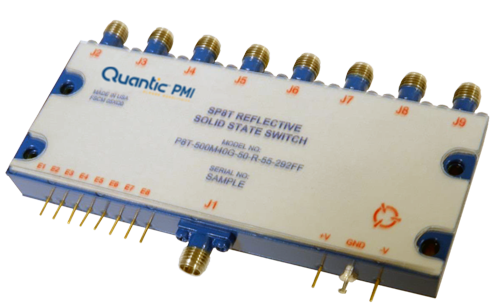

Quantic PMI Model P8T-500M40G-50-T-55-292FF is a High Speed, Single Pole, Eight Throw, Absorptive Switch operating over the frequency range of 0.5 to 40 GHz that has over 50 dB of isolation and is capable of switching within 50 ns. Housing measures 4.0" x 1.5" x 0.4" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Configuration: SP8T
Reflective / Absorptive: Reflective
Frequency (GHz): 0.5 to 40
Frequency Min (GHz): 0.5
Frequency Max (GHz): 40
Insertion Loss (dB): 10 dB Max
Insertion Loss - Typ (dB): 10 dB
Isolation (dB): 60 dB Min
Isolation - Typ (dB): 45 dB
Switching Speed: 50 ns Typ
Switching Speed - Typ: 50 ns
VSWR In/Out: 3.0:1 Typ - Measured 2.52:1/2.64:1
Input Power (dBm): 20 dBm CW
Control Signal: Three Line Decoded TTL
Power & Control Connector: Solder Pins
Connectors: 2.92mm Female
Size: 4.0" x 1.5" x 0.4"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -54 ºC to +95 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
