| General Parameters: |
|---|
| Status: | Active |
|---|

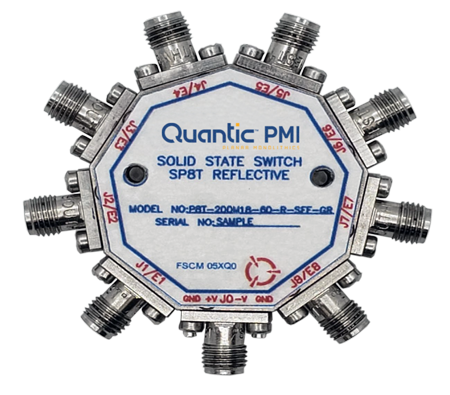

| Configuration: | SP8T |
|---|
| Reflective / Absorptive: | Reflective |
|---|
| Frequency (GHz): | 0.2 to 18 |
|---|
| Frequency Min (GHz): | 0.2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 2.5 dB Max (0.2 to 6 GHz),
3 dB Max (6 to 12 GHz),
4 dB Max (12 to 18 GHz) |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| Switching Speed: | 100 ns Max |
|---|
| Input Power (dBm): | 20 dBm Max |
|---|
| Power Supply: | +5 VDC @ 300 mA Max
-5 VDC @ 100 mA Max |
|---|
| Impedance: | 50 Ohm |
|---|
| IP3: | 40 dBm Typ |
|---|
| Control: | TTL Logic
0 = Isolation,
1 = Low Loss |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female - removable |
|---|
| Size: | Ø1.5" circle point-to-point x 0.4" |
|---|
| Finish: | Blue Paint |
|---|
| Weight: | 2.5 oz Typ |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | 0 °C to +60 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
|---|
