P8T-0R5G18G-60-T-SFF-PN * Active

High-Speed, SP8T Absorptive Switch

Buy Now
P8T-0R5G18G-60-T-SFF-PN *
Product Feature

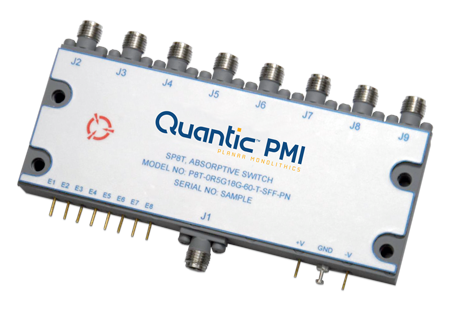

Quantic PMI Model P8T-0R5G18G-60-T-SFF-PN is a high speed, single pole, eight throw, absorptive switch capable of switching within 100ns. The frequency range is 0.5 to 18 GHz and this switch has over 55 dB of isolation. Housing is gold plated and measures 4.0" x 1.5" x 0.4" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Configuration: SP8T
Reflective / Absorptive: Absorptive
Frequency (GHz): 0.5 to 18
Frequency Min (GHz): 0.5
Frequency Max (GHz): 18
Insertion Loss (dB): 4.5 dB Max
Insertion Loss - Typ (dB): 4.5 dB
Isolation (dB): 55 dB Min
Isolation - Typ (dB): 55 dB
Switching Speed: 100 ns Max
Switching Speed - Typ: 100 ns
VSWR In/Out: 2.0:1 Max - Measured 1.94:1
Input Power (dBm): 20 dBm CW
Power Supply: +5 VDC @ 400 mA - Measured 79 mA,
-5 VDC @ 100 mA - Measured 15 mA
Control Signal: 8-Bit TTL Logic
Power & Control Connector: Solder Pins
Connectors: SMA Female
Size: 4.0" x 1.5" x 0.4"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Non-Operating Temperature: -55 ºC to +125 ºC
