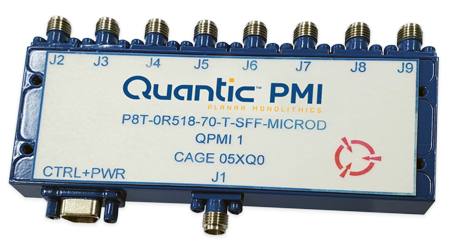

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP8T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 0.5 to 18 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 5 dB Max |
|---|
| Isolation (dB): | 60 dB Min (0.5 to 2 GHz),
70 dB Min (2 to 18 GHz) |
|---|
| Switching Speed: | 10 ns Typ, 15 ns Max (Rise/Fall),
75 ns Typ, 100 ns Max (Delay On/Off) |
|---|
| VSWR In/Out: | 2.0:1 Typ
Terminated Out: 2.0:1 Typ |
|---|
| Input Power (dBm): | 20 dBm CW Max |
|---|
| Survival Power: | 1 W CW Max (30 dBm) |
|---|
| Power Supply: | +5 VDC @ 400 mA Max,
-5 VDC @ 100 mA Max |
|---|
| Control Signal: | TTL Control |
|---|
| Power & Control Connector: | 9 Pin Micro-D Connector (Male) |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 4.00" x 1.50" x 0.40" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202G, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202G, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202G, Method 107G Cond. A |
|---|
