| General Parameters: |
|---|
| Status: | Active |
|---|

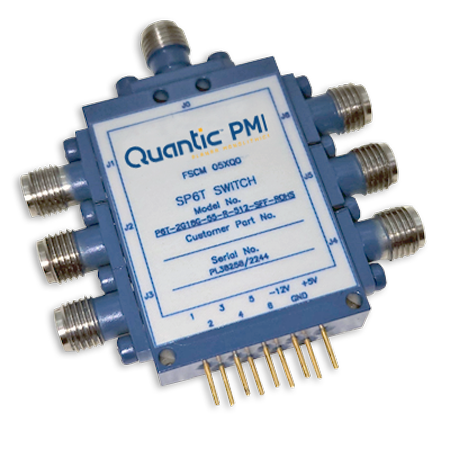

| Configuration: | SP6T |
|---|
| Reflective / Absorptive: | Reflective |
|---|
| Frequency (GHz): | 2 to 18 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 7 dB Max |
|---|
| Insertion Loss - Typ (dB): | 7 dB |
|---|
| Isolation (dB): | 55 dB Min |
|---|
| Isolation - Typ (dB): | 55 dB |
|---|
| Switching Speed: | 25 dBm CW Max |
|---|
| Switching Speed - Typ: | 15 ns |
|---|
| VSWR In/Out: | 2.0:1 Max - Measured 1.93:1 |
|---|
| Input Power: | 10 dBm CW Max |
|---|
| Survival Power: | 25 dBm CW Max |
|---|
| Video Transient: | 15 mV peak to peak Max |
|---|
| Control Signal: | Six Line TTL |
|---|
| Power Supply: | +5 VDC @ 200 mA – Measured 97 mA,
-12 VDC @ 60 mA – Measured 6 mA |
|---|
| Features: | Low Insertion Loss, High isolation, Fast Switching Speed, Small Size |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 1.0" x 1.4" x 0.3" |
|---|
| Finish: | Painted Gray |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -60 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
