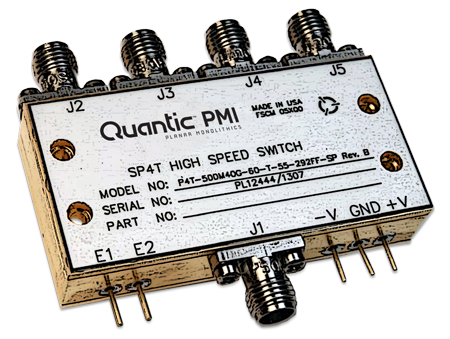

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency: | 0.5 to 40.0 GHz |
|---|
| Frequency Min: | 0.5 GHz |
|---|
| Frequency Max: | 40 GHz |
|---|
| Insertion Loss (Typ): | 6.56 dB |
|---|
| Isolation (Typ): | 74.66 dB |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Switching Speed (Typ): | 50 ns |
|---|
| Configuration: | SP4T |
|---|
| Isolation: | 60 dB Min - Measured 74.66 dB |
|---|
| Insertion Loss: | 8.0 dB Max - Measured 6.56 dB |
|---|
| VSWR In/Out: | 2.5:1 Max, 2.0:1 Typ - Measured 1.95:1 In, 1.92:1 Out |
|---|
| Input Power: | +20 dBm CW Max |
|---|
| Survival Power: | 1 W Peak 1 µs |
|---|
| Switching Speed: | Rise: 15 ns Max
Fall: 15 ns Max
Delay On: 50 ns Max
Delay Off: 50 ns Max |
|---|
| Rise/Fall Time: | 15 ns Max - Measured 5 ns max. |
|---|
| Delay On/Off: | 50 ns Max- Measured 20 ns Max |
|---|
| Control Signal: | 2-Bit Decoded TTL |
|---|
| Power Supply: | +5 VDC @ 250 mA Max - Measured 125 mA
-5 VDC @ 100 mA Max - Measured 70 mA |
|---|
| Connectors: | 2.92mm (F) |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Size: | 2.0" x 1.0" x 0.4" |
|---|
| Finish: | Gold Plated |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -55 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
