P4T-12G18G-60-5-5-SFF
  • P4T-12G18G-60-5-5-SFF
  • P4T-12G18G-60-5-5-SFF
Product Feature

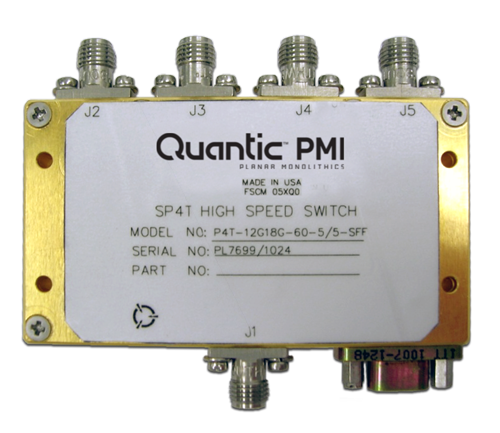

Quantic PMI Model P4T-12G18G-60-5-5-SFF is a single pole, four throw, absorptive switch designed to operate over the 12 to 18 GHz frequency range and to maintain low insertion loss, high isolation, and fast switching speeds. Housing size is 2.72" x 1.5" x 0.4" and is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Configuration: SP4T
Reflective / Absorptive: Absorptive
Frequency (GHz): 12 to 18
Frequency Min (GHz): 12
Frequency Max (GHz): 18
Insertion Loss (dB): 3 dB Typ
Insertion Loss - Typ (dB): 3 dB
Isolation (dB): 60 dB Min
Isolation - Typ (dB): 60 dB
Switching Speed: 50 ns Max
Switching Speed - Typ: 50 ns
VSWR In/Out: 2.0:1 Max
Input Power: 500 mW CW Max
Power Supply: +5 VDC @ 120 mA Typ,
-5 VDC @ 45 mA Typ
Control Signal: Two Line TTL
Power & Control Connector: Micro Sub-D 9 Pin
Connectors: SMA Female
Features: Low Insertion Loss, High isolation, Fast Switching Speed, Small Size

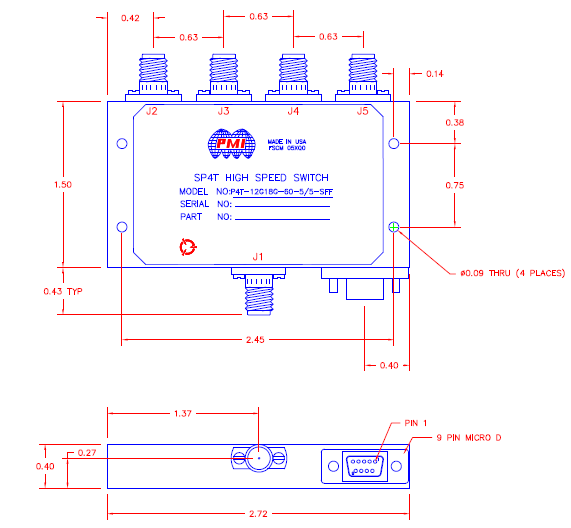

Size: 2.72" x 1.5" x 0.4"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
