| General Parameters: |
|---|
| Status: | Active |
|---|

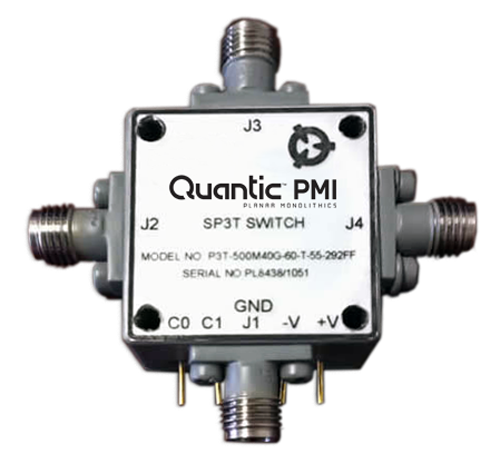

| Configuration: | SP3T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 0.5 to 40 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 40 |
|---|
| Insertion Loss (dB): | 6 dB Typ |
|---|
| Insertion Loss - Typ (dB): | 6 dB |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| Isolation - Typ (dB): | 60 dB |
|---|
| Switching Speed: | 15 ns Typ (Rise/Fall)
50 ns Typ (Delay On/Off) |
|---|
| Switching Speed - Typ: | 50 ns |
|---|
| VSWR In/Out: | 2.0:1 Typ. - Measured 2.4:1 |
|---|
| Input Power: | 20 dBm CW - Measured 20 dBm |
|---|
| Survival Power: | 1 W Peak 1 µs - Measured 1 W Peak |
|---|
| Control Signal: | 2-Bit Decoded TTL |
|---|
| Power Supply: | +5 VDC @ 200 mA - Measured 35 mA
-5 VDC @ 100 mA - Measured 15 mA |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | 2.92mm Female |
|---|
| Features: | Ultra-Broadband Performance, Low Insertion Loss, High isolation, Fast Switching Speed, Small Size |
|---|
| Size: | 1.0" x 1.0" x 0.5" |
|---|
| Finish: | Painted Gray |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -55 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
