P3T-500M40G-60-R-55-292FF * Active

SP3T Reflective Switch

Buy Now
P3T-500M40G-60-R-55-292FF *
Product Feature

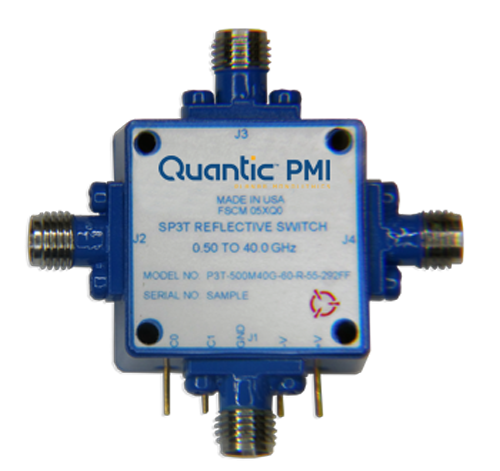

Quantic PMI Model P3T-500M40G-60-R-55-292FF is a reflective, single pole, three throw pin diode switch that operates over the 0.5 to 40 GHz frequency range. This model incorporates a TTL compatible driver for easy system integration. Housing size is 1.0" x 1.0" x 0.5" and is outfitted with 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Active
Configuration: SP3T
Reflective / Absorptive: Reflective
Frequency (GHz): 0.5 to 40
Frequency Min (GHz): 0.5
Frequency Max (GHz): 40
Insertion Loss (dB): 5.5 dB Typ
Isolation (dB): 55 dB Min
Switching Speed: 15 ns Typ (Rise/Fall)
50 ns Typ (Delay On/Off)
Switching Speed - Typ: 50 ns
VSWR In/Out: 2.5:1 Typ - Measured 2.27:1
Input Power: 20 dBm CW Typ
Survival Power: 1W Peak 1 µs
Control Signal: 2-Bit Decoded TTL
Power Supply: +5 VDC @ 200 mA - Measured 169 mA,
-5 VDC @ 100 mA - Measured 22 mA
Power & Control Connector: Solder Pins
Connectors: 2.92mm Female - removable
Size: 1.0" x 1.0" x 0.5"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -55 ºC to +125 ºC
