P3T-1G18G-65-T-SFF * Active

Absorptive, High Speed, SP3T Switch

Buy Now

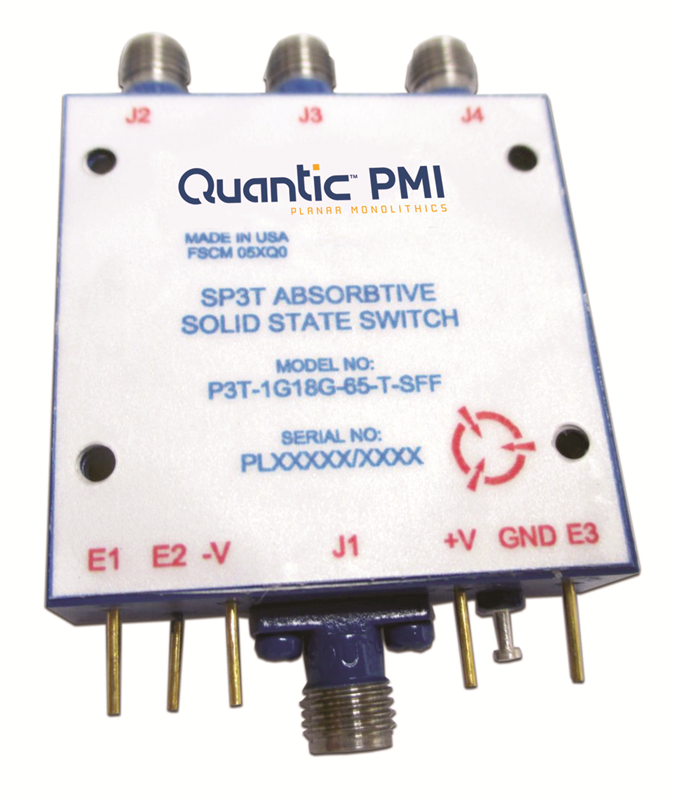

P3T-1G18G-65-T-SFF *
Product Feature
Additional Documents

Quantic PMI Model P3T-1G18G-65-T-SFF is an Absorptive, High Speed, Single Pole Three Throw Switch with a frequency range of 1 to 18 GHz and has a typical insertion loss of 3.75 dB, an isolation of 65 dB, a VSWR of 2:1, a switching speed of 100 ns, and an operating input power of +20 dBm. This model has SMA female connectors and is 1.5" x 1.5" x 0.4".


Product Specifications

General Parameters:
Status: Active
Configuration: SP3T
Reflective / Absorptive: Absorptive
Frequency (GHz): 1 to 18
Frequency Min (GHz): 1
Frequency Max (GHz): 18
Insertion Loss (dB): 3.75 dB Max
Insertion Loss - Typ (dB): 3.75 dB
Isolation (dB): 65 dB Typ
Isolation - Typ (dB): 65 dB
Switching Speed: 100 ns Max
Switching Speed - Typ: 100 ns
VSWR In/Out: 2.0:1 Max - Measured 1.96:1
Input Power: 20 dBm Max
Survival Power: 30 dBm CW Max
Impedance: 50 Ohm
Control Signal: TTL Compatible
Power Supply: +5 VDC @ 150 mA Typ,
-15 VDC @100 mA Typ
Power & Control Connector: Solder Pins
Connectors: SMA Female
Size: 1.5" x 1.5" x 0.4"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
